Is 0.27 a Good U-Factor for Windows in the Phoenix Climate?
Phoenix Window Co. considers a .27 U-factor a strong target for replacement windows in Phoenix and the Salt River Valley, where summer heat gain can drive cooling demand. It falls within the 0.20-0.29 high-performance range, but the complete choice should also account for SHGC, frame material, window style, and installation quality.
Quick Summary
- Yes. A .27 U-factor is in the 0.20-0.29 high-performance range and below the ENERGY STAR Southern-zone maximum of 0.30.
- In Phoenix's hot-dry IECC Zone 2B, pair .27 with an SHGC of 0.25 or less to address solar heat gain as well as conducted heat.
- The rating covers the whole assembly—glass, frame, spacer, and gas fill—so identical glass can perform differently in aluminum, vinyl, or composite frames.
- Typical unit pricing in the guide is $300-$1,000 for energy-efficient windows versus $180-$400 for standard units, with the assembly and installation scope affecting the final choice.
Why .27 Works in Phoenix
Pair U-Factor With SHGC
An SHGC of 0.25 or less helps control direct solar gain through west- and south-facing glass, an important companion to .27 during Phoenix's May-through-September cooling season and frequent 100°F-plus days.
Check the Whole Assembly
Read the NFRC label for the complete unit rather than judging the glass alone; frame conductivity, spacers, gas fill, coatings, seals, and window shape all affect the final rating.
Window Ratings in Context
NFRC Label With a .27 U-Factor
On an NFRC label, .27 appears in the upper-left U-factor field and describes the complete window assembly rather than the glass alone.

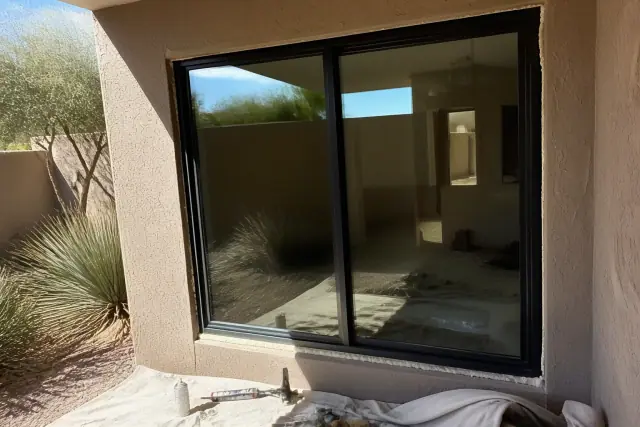

West-Facing Glass in Summer Sun
West-facing glass near Arcadia or South Mountain receives intense afternoon sun. That exposure explains why SHGC can matter as much as U-factor in a hot-desert climate.

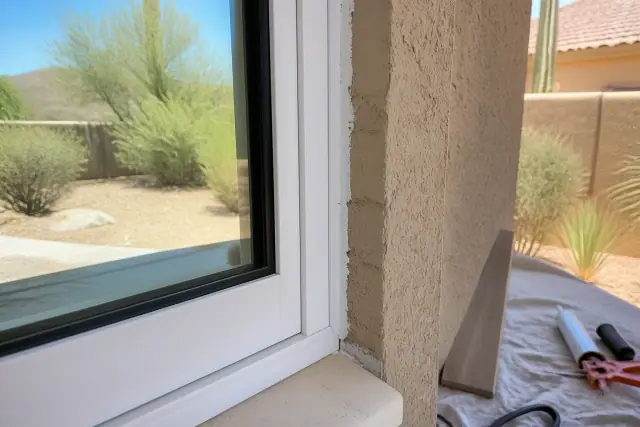

Frame and Seal Installation Details
The frame, spacer, flashing, caulk, weatherstripping, and continuous seal all affect performance. These details reveal why a laboratory rating and real-world air leakage are related but not identical.
U-Factor Benchmarks
High-Performance Double Pane
The 0.20-0.29 range is excellent, and .27 lands here without requiring premium triple-pane construction.
Standard Double-Pane Ranges
Clear-glass double-pane units typically rate 0.45-0.55, while Low-E double-pane units commonly fall at 0.30-0.35.
Older Single-Pane Aluminum
Older single-pane aluminum windows commonly rate 0.80-1.20, allowing far more heat transfer than a .27 assembly.
Triple-Pane Gas-Filled Units
The 0.15-0.25 premium range insulates better, but the added glazing and gas fill often have less value in a cooling-dominated climate than in a cold region.
.27 Planning Matrix
How to Read .27 for a Phoenix Window
| Rating or Condition | Source-Backed Benchmark | Practical Meaning |
|---|---|---|
| .27 U-factor | Inside the 0.20-0.29 high-performance range | Strong whole-window insulation against heat transfer |
| 0.30 maximum U-factor | ENERGY STAR Southern climate-zone threshold | .27 clears the threshold with room to spare |
| 0.25 or lower SHGC | Important pairing for hot-dry IECC Zone 2B | Helps limit solar heat through exposed glass |
| Existing rating above 0.40 | Inefficient by current-code benchmarks | Consider an energy audit before choosing the scope |
What a .27 U-Factor Means
U-factor measures whole-window heat transfer in Btu per hour per square foot per degree Fahrenheit of temperature difference, and lower is better. The residential scale runs from about 1.20 for a poor single-pane aluminum unit toward roughly 0.20 for leading triple-pane, gas-filled assemblies. A .27 window loses heat about 20 percent slower than a .35 window and roughly half as fast as an older single-pane unit near .80, which helps explain its value during Phoenix's long cooling season.
Factors That Change the Answer
Maricopa County's IECC Zone 2B makes an SHGC of 0.25 or less especially important beside a .27 U-factor. Vinyl and composite frames generally insulate better than aluminum, while bay and bow windows can rate slightly higher because they contain more frame and seam area. Casement and awning windows often edge out sliding windows by a few hundredths because their continuous seals compress more tightly. Full replacement controls the frame, spacer, gas fill, coating, and glass together; insulated-glass replacement inside an existing frame cannot overcome that frame's conductivity. Permitted new construction and major renovations are reviewed against current local energy requirements, and older block homes near downtown Phoenix or Encanto may still have single-pane aluminum windows rated 0.80-1.10. Because caulking, flashing, shimming, fastening, and weatherstripping affect air leakage, an assessment can be more informative than the sticker on a 15-year-old window.
Common Follow-Up Questions
Is .26 meaningfully better than .27? Both sit in the same high-performance tier, and the one-hundredth difference is usually less important than frame material and SHGC. Is 0.30 still good? It meets the ENERGY STAR Southern-zone maximum, although .27 provides more margin. Can double-pane windows reach .27? Yes—Low-E coatings, argon gas fill, and a well-insulated vinyl or composite frame can produce double-pane ratings from .27 to .30 without moving to triple-pane construction.
Apply the Rating
Compare Ratings for Your Project
A useful window assessment compares the whole-unit U-factor, SHGC, frame material, glass package, seal condition, orientation, and installation scope. Bring the NFRC label or the available window details so a .27 target can be evaluated against the actual opening and project goals.
